Price List for the 4000 Kg/Hr Steam Boiler, Working Pressure Up to 16 Bars

 "Dear sir

Please i want the price list for the following specifications of steam boiler

1. Steam boiler:

Horizontal, 3 passes, wet back, boiler thermal output up to 4000 kg/hr, working pressure up to 16 bars.

Includes:

· water feed group

· boiler mountings

· water level control

· steam pressure controls

· safety devices & safety boilers controls

· boiler control panel

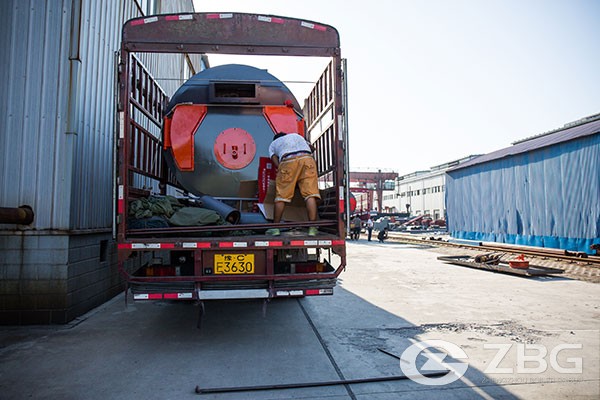

4000 kg/hr gas fired steam boiler

2. Burner (natural gas)

3. Auto blow down system

4. Duplex water softener (4000 lit/hr) includes:

Hook up for water softener

5. Dosing pump (5 lit/hr at 5 bar)

6. Steam heated feed water unit for the steam boiler

· 4000 lit

· carbon steel

· horizontal and cylindrical

· design temp :190 C,

· max steam inlet pressure 10 bar

· max condensate inlet pressure 10 bar

· max water inlet pressure 10 bar

7. Desecrator head assembly

8. Chimney

9. Blow down separator

· hook up for the blow down separator

10. High pressure steam header

· fitting &mountings for the high pressure header

· Seamless tube 10”dia. With welded ends, Mounted on a steel skid/supports & fitted with the following welded on branches :-

ü Drain = ½” - BSP

ü Pressure gauge = ½” – BSP.

ü Inlet from boiler 1 = 4” – flanged PN16.

ü Inlet from boiler 2 = 4” – flanged PN16.

ü Outlet to atmosphere = 4” – flanged PN16.

ü Outlet to process #1 = 4” – flanged PN16.

ü Outlet to process #2 = 4” – flanged PN16.

ü Outlet to feed water tank = 2” – flanged PN16

ü Stand by outlet = 2” – flanged PN16.

11. Main power distribution panel

12. Piping system (inside boiler room only)

13. Thermal insulation (inside boiler room only)

please answer as soon as possible

Thank you very much!"

Hello, sir, I am very glad to receive your letter. The business manager has been arranged to send a list of quotations to your mailbox. Please check it carefully!

Horizontal, 3 passes, wet back, boiler thermal output up to 4000 kg/hr, working pressure up to 16 bars. According to your description, you can be sure that what you need is a 4 tons/hour gas steam boiler, in the ZBG boiler Within the scope of production.

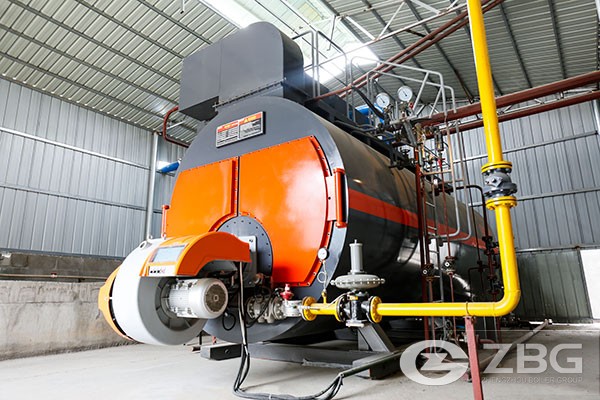

4 ton gas fire tube steam boiler

Introduction to Zheng Boiler's 4 Ton Gas Steam Boiler Parameters

Model: WNS4

Rated evaporation capacity: 4t/h

Rated steam pressure: 10, 13, 16, 25Bar, etc.

Rated steam temperature: 184, 193, 204, 226℃

Water supply temperature: 20℃

Heat transfer area: 103M3

Applicable fuel: light oil, heavy oil, gas, gas, etc.

Light fuel consumption: 258kg/h

Heavy fuel consumption: 243kg/h

Natural gas consumption: 292Nm3/h

City gas: 620Nm3/h

Natural gas supply pressure: 100-200mbar

City gas supply pressure: 100-200mbar

The total electric power of burning heavy oil three-phase electricity: 26.2KW

Total electric power of burning light oil Three-phase electricity: 13.0KW

Gas total electric power three-phase electricity: 13KW

Maximum transport weight of the boiler: 11.7T

Boiler full water volume: 9.2M3
