100 tons/hour bi-drum water tube boiler and allied accessories as per specificiations

We require design/drawing charges for manufacturing 100 tons/hour bi-drum water tube boiler and allied accessories as per specificiations given below. Please also provide design/drawing of civil works and foundation including loads.

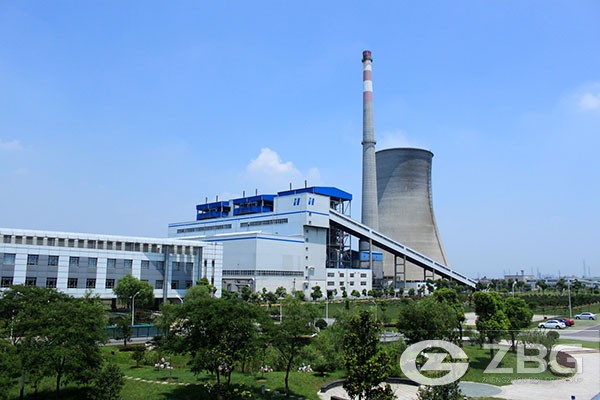

100 tons/hour bi-drum water tube boiler

Boiler design specifications for 100 tons /hour capacity

Bi-drum supported type, water tube, natural circulation, bagasse/heavy furnace oil fired.

S. No description specific values

1 steam evaporating capacity (mcr) 100 tons/hour

2 steam pressure at super heater outlet 25 kg/cm²

3 design pressure at super heater outlet 29 kg/cm²

4 steam temperature at super heater outlet 360⁰c

5 feed water temperature at boiler inlet 105⁰c

6 flue gas temperature at stack outlet 180⁰c

7 draft system balance draft

8 fuels bagasse with 52% moisture

Heavy furnace oil (hfo)

9 boiler efficiency bagasse 82%

Heavy furnace oil (hfo) 85%

10 electric source main power – 50 hz, 415 volts, 3 phase

Instrument power - 50 hz, 220 volts, 1 phase

11 stock fired fuel feeding system

12 dumping grate ash extraction system

Boiler accessories

A)feed water pump with electrically powered motors

B)soot blowers

C)boiler fans

D)control instruments

E)pneumatic jacks for dumping grate

F)air heater

G)economizer

H)dust collection system

I)feed water tank with deaeratot

J)steam separator tank

K)blow down tank

L)ash conveyor
