35 Ton Per Hour Industrial Coal-fired and Biomass Power Boiler for Bangladesh Paper Mill

 Dear Sir

We are very much interested to set up a Paper Mill in Bangladesh. We want to produce Electricity in our plant by using Coal, Pulp Waste

& other Bio-mass as fuel of the Steam Turbine.

Our requirements :

1. Steam production - 35 Ton
2. Steam to be use in Turbine and Pulping
3. Electricity production : 10 MW
4. Fuel to be use : Coal, Pulp Waste, Bio-mass

Please know your details as early as possible.

With best regards

35 Ton Per Hour Industrial Coal-fired and Biomass Power Boiler

Dear Sir

I am very pleased to receive your email. ZBG produces 35-ton steam boilers for paper mills. The 35-ton coal-fired and biomass fired steam boiler has always been our best-selling furnace type, and we have many projects in the world that we can investigate.

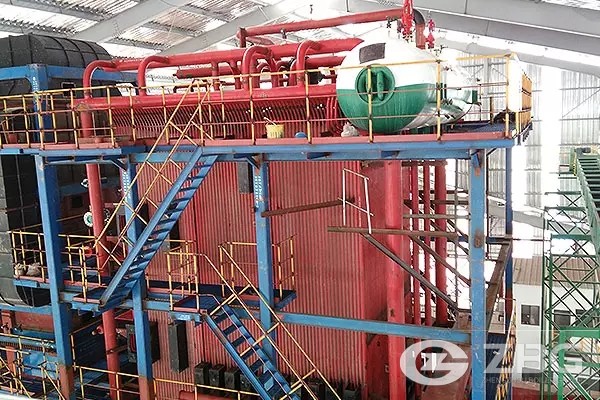

India 35t Circulating Fluidized Bed Power Plant Boiler

• Mode:CFB power plant boiler
• Capacity:35 tons
• Application:Thermal power plant

To promote the production and change the present situation of the power supply shortage, a thermal power plant of India ordered a 35 ton CFB power plant boiler from our company, which is of high efficiency and energy saving. The workers of our company had speed up the progress of production and installation, made the equipment installed and put into use in time.

Circulating fluidized bed power plant boiler

1. Rated steam capacity: 35t/h
2. Rated steam pressure: 3.82MPa
3. Rated steam temperature: 450
4. Feed water temperature: 104
5. Design fuel: lignite coal
6. CFB power plant boiler advantages

The CFB Power Plant Boiler has many advantages, such as coal saving, low wear, low resistance, high efficiency and environment protecting. Patented automatically adjusted back feeder and super high efficiency cyclone separator can largely save power consumption for customers. Advanced membrane water wall structure improves the efficiency. Under the operation conditions of low chamber air pressure, can save more than 5% power consumption. There is almost no wear and tear on the heating surface, the annual running time was up to 8000hours, which can ensure the electricity use of production and life.
