SHL10-2.5/400 10 tons coal-fired biomass dual-purpose steam boiler

 SHL10-2.5/400 is a coal-fired biomass dual-purpose steam boiler with a rated evaporation capacity of 10 tons, a pressure of 2.5MPa, and a rated steam temperature of 400°C. ZBG Group SHL10-2.5/400 is a steam boiler manufactured by Xi'an Jiaotong University. The latest combustion theory results and the latest boiler development technology have the advantages of high thermal efficiency, strong overload capacity, and sufficient output.

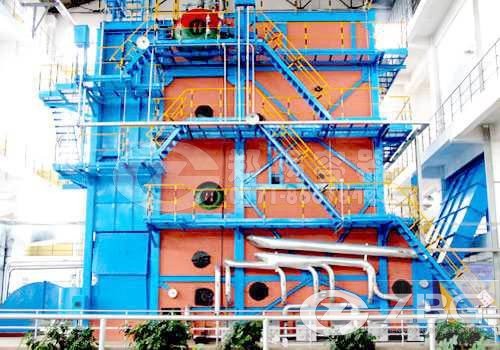

SHL10-2.5/400 10 tons coal-fired biomass dual-purpose steam boiler

1. Boiler structure

The basic structure of SHL10-2.5/400-A consists of upper drum, lower drum, water wall, convection tube bundle, economizer, air preheater and other components. The combustion equipment adopts scaly chain grate, divided into compartment ventilation structure, and can be adjusted sensitively. The combustion system operates stably, has strong adaptability to coal types, and has its own cyclone dust removal function, so that the blackness of the exhaust smoke and the original dust concentration of the boiler meet environmental protection requirements.

2. Technical parameters

• Furnace type: SHL10-2.5/400-A/T
• Fire grate: structural form of double-layer or single-layer arrangement
• Rated evaporation capacity: 10 steam tons
• Pressure: 2.5MPa
• Rated steam temperature: 400°C
• Feed water temperature: 105℃
• Design fuel: Class II bituminous coal
• Appearance: bulk
• Thermal efficiency: 78%
• Scope of application: thermal power plant power generation, residential heating in winter, central heating.
