Natural Gas Fired Condensing Steam Boiler WNS4-1.25-Q
2023-04-10 08:35:24WNS4-1.25-Q natural gas-fired condensing steam boiler is a fire-tube boiler. Zhengzhou Boiler introduced advanced technology and manufacturing technology from Germany. It adopts staged combustion + flue gas internal circulation + FGR flue gas recirculation technology and FPB full pre-mixed technology. , The measured NOx emission concentration is far lower than 30mg/m3. The following is an introduction to the model parameters and gas consumption of the natural gas fired boiler WNS4-1.25-Q.

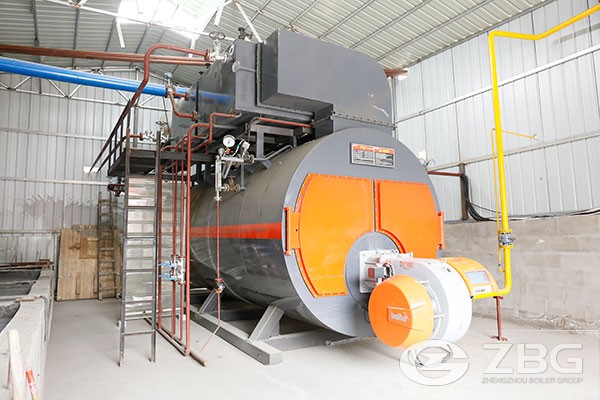

natural gas-fired condensing steam boiler
Main equipment details
| serial number | name | Specifications, models | quantity | skills requirement |
| 1 | Natural gas fired condensing steam boiler | WNS4-1.25-Q | 1 | Has passed the energy efficiency and internal and external inspection of the boiler, and provided a test report (provide the original), three-pass, wet back |
| 2 | Natural gas firedsteam boiler | WNS2-1.25-Q | 1 | Has passed the energy efficiency and internal and external inspection of the boiler, and provided a test report (provide the original), three-pass, wet back |
| 3 | burner | matching | 2 | The fuel is natural gas, brand: Italian Black & Decker |
| 4 | Economizer (condenser) | matching | 2 | Integration of condenser and boiler |
| 5 | chimney | matching | 2 | The thickness is 5mm and the height is 8 meters |
| 6 | Boiler control cabinet | matching | 2 | Fully intelligent touch screen control system |
| 7 | boiler feed pump | / | 4 | Matching with the boiler |
Random data of gas boiler
Natural gas boiler manufacturers need to provide but not limited to the following information:
1.Boiler quality certificate (including factory certificate, metal material certificate, welding quality certificate and hydraulic test certificate);
2. Boiler installation manual and operation manual;
3. Boiler drawing (including general drawing, installation drawing and main pressure parts drawing);
4. Strength calculation sheet or summary table of calculation results of compression components;
5. Calculation book or summary table of calculation results for safety valve discharge;
6. Factory information of safety accessories;
7. Information on major design changes of pressure components.
Gas consumption of 4 tons gas steam boiler
There are many formulas for calculating the gas consumption of gas boilers. The most commonly used formulas are based on the thermal efficiency of gas boilers, the calorific value of natural gas and the size of the furnace. Gas boiler gas consumption (per hour) = gas boiler power/time/fuel calorific value/gas boiler thermal efficiency can be calculated, which is simple and convenient. According to the common gas calorific value of 37MJ, the boiler power is 2.8MW. Calculated with a natural gas efficiency of 92%, the gas consumption of a 4-ton gas-fired steam boiler is around 296Nm3.
