WNS Horizontal Gas Oil Fired Steam Boiler Manufacturer

2026-07-30 19:07:37 WNS Horizontal Gas Oil Fired Steam Boiler Introduction, Application and Advantages

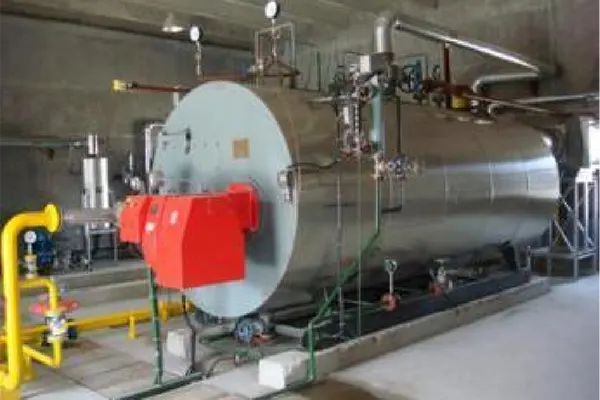

In industrial steam supply field, WNS series boiler is very popular by users. XHJ boiler optimize the WNS structure many years, performance more stable than ordinary boiler. WNS horizontal gas oil fired steam boiler which is fast-loading internal combustion three return fired tube boiler. Use set side boiler barrel and wet back structure. High temperature wash the second return and third return smoke tube in turn. Then from back smoke room, pass through chimney to discharge into air. With advanced burner,adopt combustion automatic proportion adjustment. feed water automatic adjustment, program start and stop.



WNS horizontal gas oil fired steam boiler application

Different industrial production need different steam standard, XHJ boiler WNS series can fully meet various industry steam demand. The WNS horizontal gas oil fired steam boiler can be used for producing desired steam for product manufacturing process in the weave factory, printing and dyeing, papermaking and other industry like: food, rubber, plastic, chemical, pharmaceutical, etc, and for heating room and bath in factories, departments, hotels, schools, restaurants, services industries etc.
WNS horizontal gas oil fired steam boiler advantages

XHJ boiler strictly follow industrial standard to produce WNS gas oil boiler, every detail is polished for long time running.



1. this horizontal wet-back gas oil steam boiler features three-return internal combustion and fire-tube shell;
2. unique design of large combustion chamber enlarges heating surface, downsizes the boiler and reduces the emission of NOx;
3. wave-type hearth makes the boiler much safer;
4. spirally thread tube promotes heat diffusion and enhances the heat efficiency;
5. the gas chamber adopts Multi-stage seal, which prevents the gas`s leakage

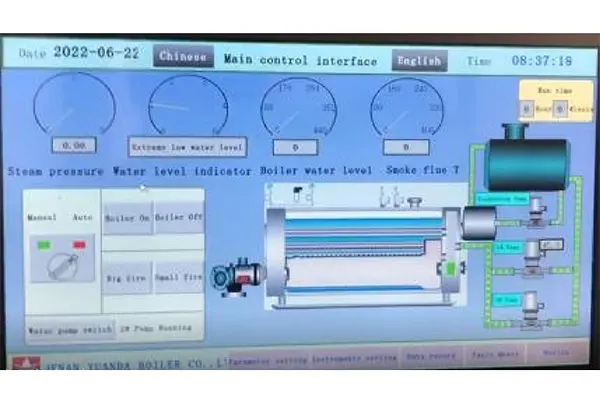

6. the control system can work stably in hot and wet environment for a long time;
7. The large steam room and high quality steam.
8. multi-layer protection on pressures, temperature, water-level and burner itself keeps the boiler to run safely and reliably.
9. high-efficiency Insulating materials reduces the boiler`s surface temperature, the heat loss is negligible;
10. pressure part is made from quality steel;
11. all products have to pass a series of examination before leaving the factury, such as hydrostatic test and X-ray detection;
12. all accessories, such as bunner, water pump, water level controller, valve and instrument, can substitute for products of the same kind from world-famous company;
13. the inside of the furnace body is equipped with man hole, head pore and hand hole, which make the repairmen and maintenance much simpler and convenient;
14. it is widely adapted to various fuels, including light oil, heavy oil, residual oil, natural gas steam boiler
15. XHJ boiler 20% bigger than the boiler actual use Can reduce the boiler fatigue and prolong the boiler span life
16. Whole set,equip with the valve group and other necessary  spare parts in the burner
17. China Top Brand CNP pump, 1.5-2 times higher than steam capacity, 120℃ temperature resistance, one use one standby

Overall, XHJ boiler WNS gas oil steam boiler is cost-effective industrial equipment. It low failure rate and easy maintenance, worthy for factory long-term cooperation and purchase.
