8 T/H Low-pressure Gas-fired Steam Boiler Parameter Case

2023-03-09 08:54:52

Boiler body part

  1. An 8 t/h low-pressure gas-fired steam boiler , including: the boiler body, economizer, burner and pipelines, instruments, valves, platforms, escalators within the scope of the body, etc.;
  2. Instrument valves within the scope of the boiler body, the valves include boiler water inlet regulating valve group, main steam valve, emergency water discharge valve, safety valve, etc. The valves of the boiler body are all equipped with matching flanges. Instruments include primary instruments, secondary instruments, and control cabinets. The seller shall provide the cable models for all instrumentation cables leading into the boiler control cabinet, and the buyer shall be responsible for the purchase. Conductivity adjustment of steam outlet, all installation materials of instruments, etc. Boiler steam outlet and safety valve outlet are equipped with mufflers;
  3. Boiler blower (with imported muffler), burner, induced draft fan (if necessary), gas conditioning system, etc.;
  4. Explosion-proof doors on the boiler body and outlet flue;
  5. Fuel gas pressure regulating system (hydrogen fuel system and natural gas system need to be considered separately).

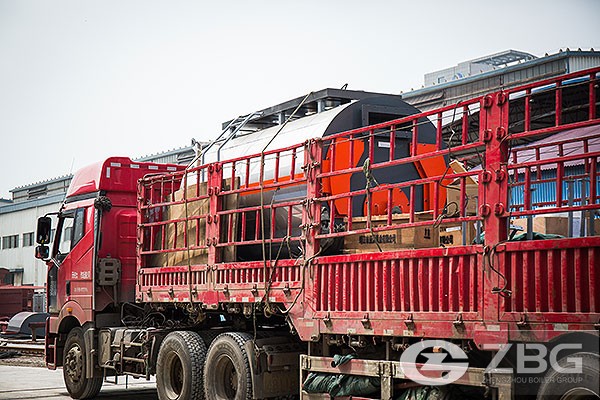

 8 t/h low-pressure gas-fired steam boiler .jpg

 8 t/h low-pressure gas-fired steam boiler

Boiler technical parameters:

(1) Boiler type: gas boiler

(2) Rated evaporation: D=8t/h

(3) Rated steam pressure: 1.25MPaG

(The actual operating pressure can be operated stably for a long time at a pressure lower than this pressure, such as 0.8 MPa(G))

(4) Rated steam temperature: 193°C

(5) Rated water supply temperature: 104°C

(6) Design exhaust temperature: determined by the manufacturer

(7) Boiler design thermal efficiency: >92%

(8) Boiler fuel: hydrogen, natural gas

Gas consumption of 8 tons gas steam boiler

The gas consumption of boilers is a very common and important issue. The gas consumption of an 8-ton gas-fired steam boiler produced by Zhengzhou Boiler Factory is about 600 cubic meters per hour. The specific gas consumption needs to be calculated according to the boiler efficiency and fuel calorific value. .

Shandong pet food 8 tons WNS condensing low nitrogen gas boiler project

The client manufacturer of this project is rather special, not a "food factory" as we usually understand, but it does belong to the food industry. It produces pet food, pet health care products, pet supplies and other related pet products, and also involves limited compound feed for feed . This integrates the two fields of food and feed, but the requirements are the same, and both require steam for processing and production. Shandong Province is currently one of the areas where small-scale coal burning is very strictly controlled, and nitrogen oxide emissions are also shrinking. Therefore, keeping up with the national trend of energy conservation and emission reduction, customers from this province often give priority to low-nitrogen combustion gas boilers with emissions less than 30mg, which are easy to start and stop, high in automation, and low in one-time input costs. More importantly, they are used It has a long service life and can guarantee trouble-free operation for a long time.
