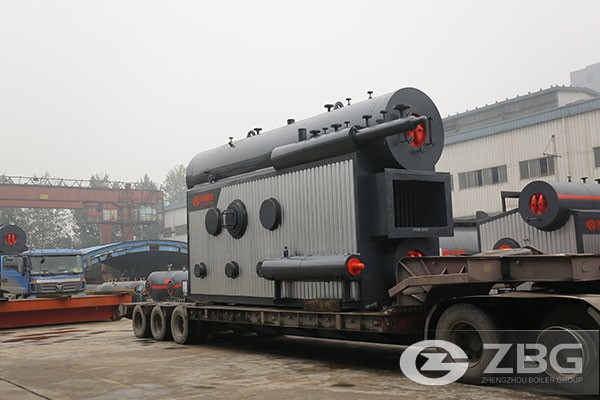

Flue Gas Volume 12000nm³ Membrane Wall 3.5t Waste Heat Boiler Technical Parameters

2023-04-20 11:20:41

 Membrane water-cooled wall refers to the water-cooled wall composed of air-tight tube panels welded by flat steel and tubes. Membrane water wall can ensure the good tightness of the furnace, and can significantly reduce the air leakage coefficient of the furnace for negative pressure boilers, and improve the combustion conditions in the furnace. It can increase the effective radiation heating area, thereby saving steel consumption. The membrane wall of the boiler is the membrane water wall, which has the advantages of simplicity, steel saving, good heat preservation and good air tightness.



Technical parameters of membrane wall waste heat boiler

  1. Rated evaporation capacity: 3.5t
  2. Flue gas volume: 12000Nm³
  3. Inlet temperature: 1100℃
  4. Outlet temperature: 500-550°C
  5. Water supply temperature: 104°C
  6. Steam temperature: 194°C
  7. Steam pressure: 0.8-1.2Mpa

The waste heat boilers produced by Zhengzhou Boiler Co., Ltd. are negative pressure boilers, and most waste heat boilers also use membrane wall structures. When purchasing a waste heat boiler, in addition to the requirements on whether it is a membrane wall, the user also needs to clarify which industry the waste heat boiler's flue gas source is, the flue gas volume, flue gas temperature and other parameters. The model parameters of the waste heat boiler are determined by the manufacturer according to the actual situation of the user. Zhengzhou Boiler Factory is an old waste heat boiler manufacturer. We have also made great achievements in the field of waste heat boilers. If you need customized solutions and quotations for waste heat boilers, please contact us!
