25 Tons Biomass Medium Temperature And Medium Pressure Boiler

2018-12-21 11:09:10

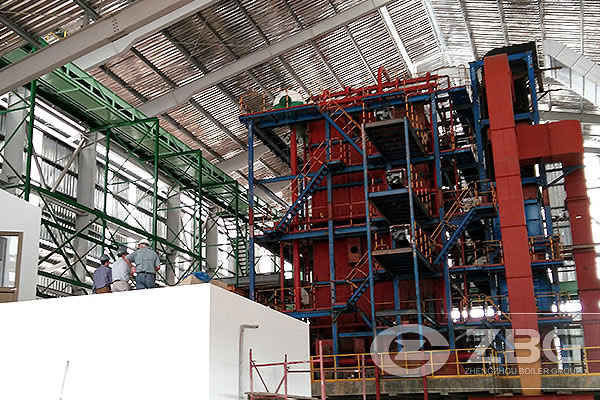

25 Tons Biomass Medium Temperature And Medium Pressure Boile

The 25 ton biomass medium-temperature and medium-pressure boiler is actually a 25 ton biomass boiler with a pressure of 3.82 MPa and a temperature of 450℃. In ZBG, the chain grate technology is usually used for biomass boilers of this capacity. Although circulating fluidized bed technology is also used, with the promotion of the transition from small coal fired biomass boilers to large boilers, 25 ton circulating fluidized bed biomass boilers are rare, at least in a few areas.

The 25 ton medium temperature and medium pressure boiler to 75 t/h medium temperature and medium pressure chain grate biomass boiler is a new energy boiler product developed by our company for heating or generating electricity by burning biomass fuels such as straw, rice husk, sawdust and bark. The boiler adopts single beam grate structure, the boiler body adopts angle tube self-supporting structure, and the tail part adopts corner tube self-supporting structure. A frame supporting structure is adopted. Furnace and downstream flue are surrounded by a fully welded membrane wall structure. High and low superheaters and convective heating surfaces are arranged in downstream flue. Water spray desuperheaters are arranged in the middle of two-stage superheaters, and economizers and air preheaters are arranged in the upstream flue at the tail.

For more information about 25 tons medium temperature and medium pressure biomass fired boilers, please consult ZBG directly online!
