WNS14-1.25/115/70-Q Gas Hot Water Boiler Price

 WNS14-1.25/115/70-Q gas-fired hot water boiler is a horizontal internal combustion chamber combustion quick-install boiler. It is composed of three parts when it leaves the factory: the boiler host, the chimney and the piping system, of which the host and the chimney have been installed After the manufacture in the factory, the pipeline valves and instruments supporting the main engine have been installed at random, and the main engine and chimney can be assembled at the site.

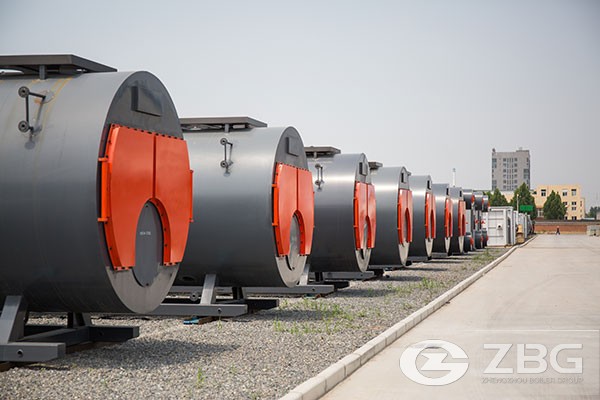

wns14-gas-hot-water-boiler

1. Technical parameters

• Furnace type: WNS14-1.25/115/70-Q
• Rated thermal power: 14mw
• Rated outlet pressure: 1.25MPa
• Rated outlet water temperature: 115°C
• Rated water inlet temperature: 70°C
• Light diesel oil: 1239kg/h
• Natural gas: 1504Nm³/h
• City gas: 3139Nm³/h
• Coke oven gas: 3008Nm³/h
• Methanol: 2717kg/h
• Maximum transport size: 9300*3330*3848mm

2. Price including tax

The tax-included price of a 14MW gas-fired hot water boiler mainly includes the price of the boiler body, auxiliary equipment, burner, transportation and installation. The tax-included price of the whole set of equipment is about 1 million yuan or more. For details, you can consult the online engineer.

3. Project case

• Name: Beijing 14MW Gas Boiler Project
• Project Address: Tongzhou, Beijing
• Purchase equipment: 7MW/14MW WNS type gas hot water boiler
• Application field: heating in winter

In order to meet the demand for heating, Beijing Tongzhou Heating Company ordered a 14MW gas-fired hot water boiler and a 7MW gas-fired hot water boiler from Zhengzhou Boiler Co., Ltd. for production. In March 2015, the project has completed the finalized energy efficiency test. The boiler combustion efficiency is high, the heat loss is small, the comprehensive energy efficiency is up to the standard, and the environmental protection performance is up to the standard.
