Please Send Me Technical Parameters of 35 TPH Gas/HFO steam Boiler

2023-02-27 09:51:21

SZS Gas & Oil Water Tube Boiler

1-Capacity : 35 TPH

2-Pressure : 10 BAR

3-Fuel : Natural gas/ H F O

SZS35-2.5-YQ procurement equipment

device name

The main technical parameters


Fully automatic oil and gas dual water tube steam boiler

Rated evaporation capacity 35t/h, rated steam pressure 2.5MPaG, rated steam temperature 226°C (saturated)

2 units

Note: 1) The scope of boiler procurement contracting is the boilers and their supporting auxiliary machines and electric control instrumentation equipment in the above list of goods for bidding.

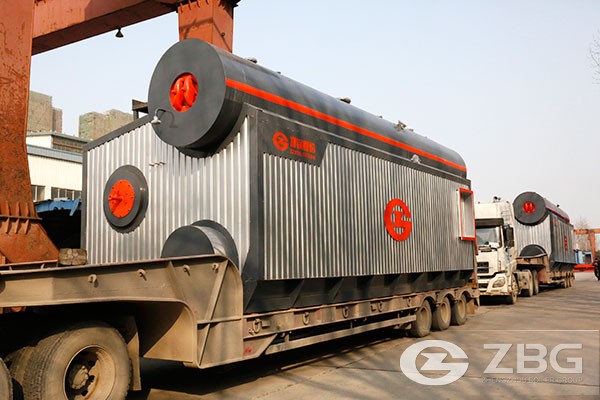

SZS35-2.5-YQ boiler.jpg

SZS35-2.5-YQ boiler

Basic configuration of SZS35-2.5-YQ boiler equipment:

1) Boiler body;

2) Platform escalator

3) Burner;

4) Blower (standard configuration of the burner manufacturer);

5) All instruments, automatic control systems, control cabinets within the scope of the boiler system, cables, wires, cable bridges and other accessories between the control cabinet and equipment;

6) Low-voltage power distribution system, power distribution cabinet, cables and wires between power distribution cabinet and equipment;

7) Valves, body pipelines;

8) Energy saver;

9) Fault display device;

10) Combustion automatic adjustment device, water supply automatic adjustment boiler control device;

11) Fuel supply device for burner, including fuel pump;

12) Sample cooler

13) Chimney (one chimney for two boilers)

14) Monitoring system (display, recording function) device;

15) Safety protection system device;

16) Supporting electric water pump;

17) Automatic continuous sewage discharge device;

18) Automatic periodic sewage discharge device;

19) Equipped with steam flowmeter, feed water flowmeter, fuel flowmeter and gas flowmeter;

20) Proportional integral regulating valve for water supply;

21) Liquid level sensor with 4-20mA output signal, steam pressure sensor with 4-20mA output signal;

22) Other related supporting products.
