6 Tons of Natural Gas Boiler Energy Consumption, Emissions, Occupied Space

2023-08-21 08:39:42

 The 6-ton natural gas boiler is a very common small boiler. The boiler produces 6 tons of steam per hour, which can meet the gas consumption of general food factories, beverage factories, wineries, pharmaceutical factories, packaging factories, building materials factories, and paint factories. need. Recently, a customer consulted about the energy consumption, emissions, and occupied space of a 6-ton natural gas boiler with a pressure of 1.0mpa. The following editor will introduce them one by one.

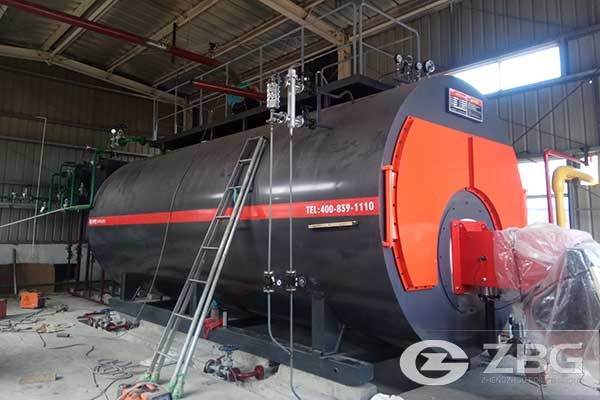

6-ton natural gas boiler

6-ton natural gas boiler

1. Energy consumption of 6 tons natural gas boiler

The energy consumption of natural gas boilers produced by ZBG group is still relatively low compared with boilers from other manufacturers. The gas consumption of a ton of gas-fired boiler is 76 cubic meters per hour, and the gas consumption of a 2-ton gas-fired boiler is 152 cubic meters per hour. By analogy, it can be theoretically It is calculated that the gas consumption of a 6-ton gas-fired boiler is 456 cubic meters per hour. The specific actual gas consumption is generally related to the thermal efficiency of the furnace and the calorific value of the fuel. The furnace has high thermal efficiency and high fuel calorific value, so the relative gas consumption will be less, and vice versa.

2. 6 tons of natural gas boiler discharge

The gas-fired boilers produced by ZBG group are strictly implemented in accordance with the most stringent standards from design to production: SO2 emission is less than 100mg/m3, nitrogen oxide emission is less than 80mg/m3, and particulate matter is less than 30mg/m3. All pollutant emissions are lower than the national emission standards, and users can choose with peace of mind. ZBG has a Class A boiler manufacturing license, ISO9001 quality system certification and ASME S (boiler) & ASME U (pressure vessel) certification of the American Society of Mechanical Engineers. More than 70 years of boiler brand is trustworthy.

3. 6 tons of natural gas boiler takes up space

The size of the 6-ton WNS gas-fired boiler is 5300*2380*2694mm. Users can refer to this boiler size when designing the boiler room. Of course, this is the size of the WNS-type boiler. If it is a SZS-type gas-fired boiler, the boiler size must be re- Measurement, different models, the size of the boiler is not the same.
