10 Tons of Coal-fired Biomass Dual-purpose Hot Water Boiler Technical Parameter Table

2023-03-13 08:48:46

 We know that coal-fired boilers and biomass boilers have the same furnace type, both are SZL chain grate boilers, and boilers that can burn coal can also burn biomass fuels, but the auxiliary equipment equipped is somewhat different. SZL7-1.0/95/70-AII assembly is a common dual-purpose furnace type of coal-fired and biomass boilers on the market. The following is about SZL7-1.0/95/70-AII 10 tons of coal-fired biomass dual-purpose hot water Boiler technical parameter table.

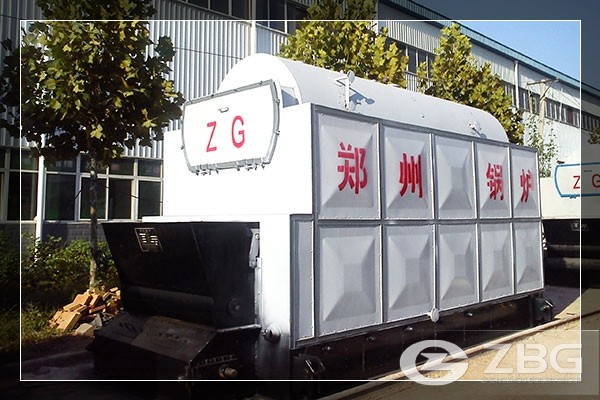

SZL 7mw Chain Grate Boiler.jpg

SZL 7mw Chain Grate Boiler

SZL7-1.0/95/70-AII boiler technical parameter table

serial number

name

Model Specifications

quantity

Remark

1

Coal-fired hot water boiler

SZL7-1.0/95/70-AII assembly

1 set

plateau type

2

Layered coal feeding device

FCS-10T

1 set



3

Instrument valve

Supporting 10T

1 set



4

Economizer

cast iron

1 set



5

Boiler control cabinet

DKS-15T

1 set



6

reducer

GL-16P

1 set



7

Coal loader

SMJ-10T

1 set



8

Slag machine

GBC-10T

1 set



9

Water Bath Dust Collector

Q=45000m3/h

1 set



10

blower

GG10-15

1 set

plateau correction

11

Induced fan

GY10-15

1 set

plateau correction

12

water treatment

Fully automatic, Q=12m3/h

1 set



13

filter deaerator

Fully automatic, Q=12m3/h

1 set



14

Airtight deaeration water tank

V=10m3

1 set



15

Water supplement constant pressure unit

60+VG500 type

1 set



16

Heating and hot water circulation

Q=160m3/h, H=32m

3 units



17

decontamination device

matching

1 set



18

Trap



1 set



19

water collector



1 set



20

Transport fees

Delivery to Golmud, Qinghai Province, 400 kilometers away from Golmud

1 set/set



twenty one

installation fee



1 set/set



twenty two

total





15 ton biomass steam boiler for a paper mill in Sri Lankan

In recent years, the Sri Lankan government has concentrated on developing the economy. A paper company has seized the opportunity to accelerate reforms, and its output has also flourished, and there has been a gradual shortage of supply. As a result, the company urgently needs to purchase a stable steam boiler to meet production. After investigation, the company finally purchased a 15-ton szl series biomass steam boiler from ZBG.

The paper mill operates an advanced pulp and paper manufacturer manufacturing facility, producing many types of quality writing and printing papers. This 15-ton biomass steam boiler will be used in the production process of concentration, bleaching and drying in the papermaking process.

The features of 15 ton szl series biomass steam boiler

In the boiler operation, biomass fuels are burnt and produce hot gas transferring heat to water. SZl series biomass steam boiler have better response to steam demand and they can produce steam at high pressure and high capacity. In the szl series biomass steam boiler, fuel will be fed at one side and then the iron chain will bring it moving and burning along the combustion chamber. The combustion air comes from beneath of the grate. According to the characteristics of different fuels, the boiler can optimize the design of the width, length, grate speed, primary and secondary air ratio, and the position and direction of the secondary air outlet to ensure the boiler output and thermal efficiency, run smoothly.
