Technical Parameters and Project Cases of 6 T/h Water Tube Boiler With Low Operating Cost

6 T/h Water Tube Boiler Technical Parameters

1.6 ton/hr water tube boiler - 1 set

A)rated steam capacity – 6 ton/hr

B)design pressure – 1.25 mpa

C)hydraulic pressure – 1.65 mpa

D)steam temperature – 194 deg c

E)fuel – heavy oil / natural gas

F)burner type – dual burner

G)efficiency – 91%

H)2 year recommended spare including plcs,

• Touch screen
• Plc, burner controller
• Temperature controller
• Flame detector
• Ignition transformer
• Ignition electrode
• Pressure controller
• Water level controller
• Damper accurator
• Feed water pump
• Oil pump for burner, nozzle
• Flow meter

I)including raw water treatment plant, piping & electricals installation

J)sufficient techanical supervision, commissioning, test running, tranning and complete instruction

K)techanical documents and sufficient certificate from the authorised terms of the country of origin – taiwan

The fire tube boilers produced by ZBG Boiler Factory include oil-fired gas boilers, coal-fired boilers, biomass boilers, etc. If you are interested in our fire tube boilers, please consult us!

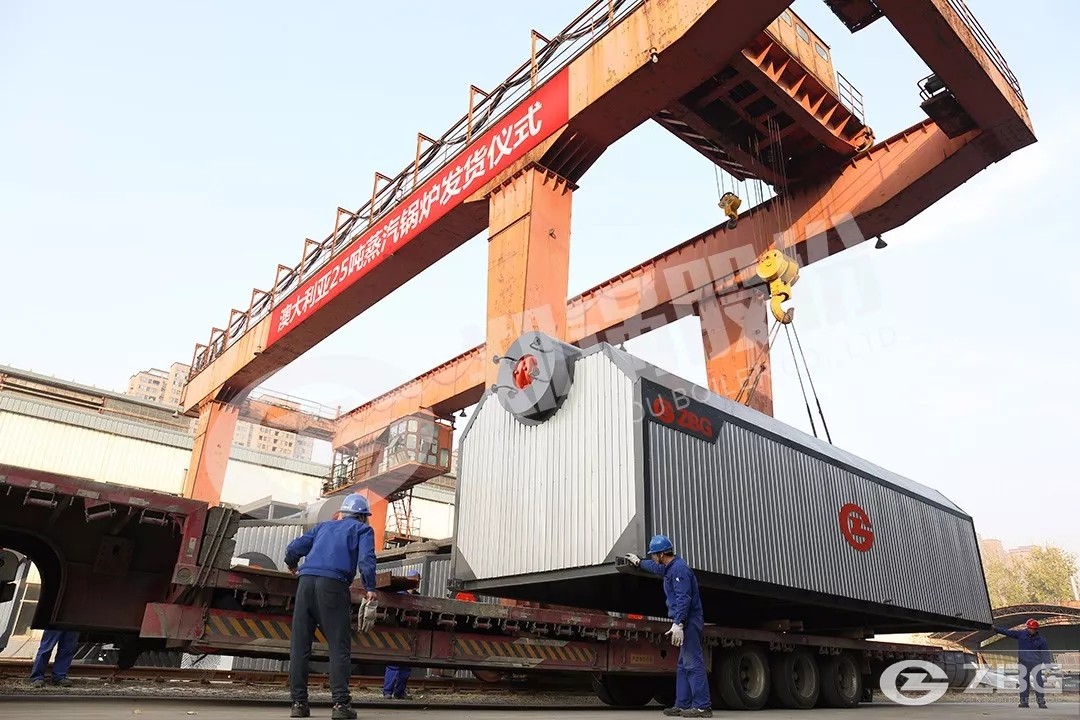

10 Ton Biomass Water Tube Boiler Project in Beverage & Food

• Mode:SZL10-1.25-T
• Capacity:10 tons
• Application:Beverage & food plant

The SZL10-1.25-T biomass water-tube steam boiler is a double-drums shop assembled chain grate boiler, rated evaporation 10t/h, rated steam pressure 1.25MPa. The rated steam temperature is 193°C and the fuel is biomass pellet, but it can co-firing with coal fuel. The beverage & food company is satisfied with its high efficiency and clean combustion.

The boiler leaves the factory in two parts: the upper part includes the boiler proper, upper steel frame and upper furnace wall and the lower part includes coal bucket, chain grate, lower furnace wall and inner ventilating duct. Except the front and back arch and part of the brick walls are installed at site, the remaining parts all leave the factory in shop assembled form. The rear matching air-preheater and ventilating duct leave the factory together with the boiler. The rear dust collector and its connecting tubes are delivered according to contract.
