CFB Power Plant Boiler

Type: Power Plant Boiler Capacity/Hot Power: 35 - 410Ton Pressure: ≤9.81MPa Fuel: Coal, Biomass, Co-firing Application: Captive Power Plant, Thermal Power Plant

Overview

Brief Introduction:CFB Power Plant Boiler

CFB Power Plant Boiler is a kind of large scale heating equipment applied in thermal power plant and other industries for power generation, it has the features of fuel flexibility, high combustion efficiency, low NOx, SOx emission, it is the good clean heating or power solution.

Application:

Used in thermal power plant, power generation in iron & steel industry, cement plant, paper mill, mining industry, etc.

Features:

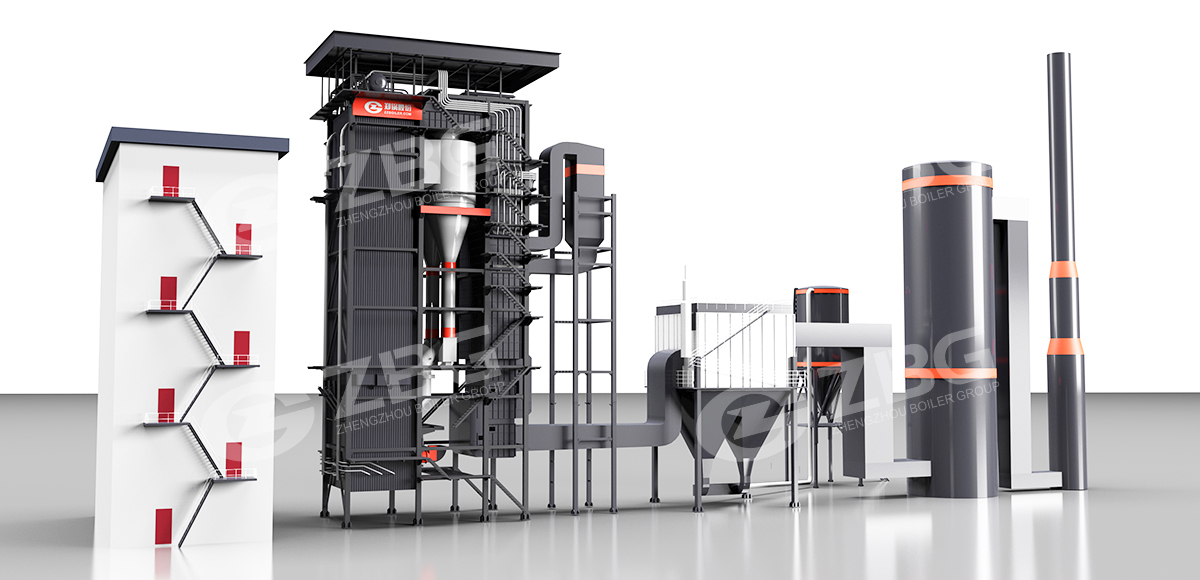

  • Unparalleled fuel flexibility: it can burn low grade fuels such as lignite, anthracite, discarded coal, petroleum coke, also burn opportunity fuels such as biomass wood chips, olive pits, wood pellets, rice husk, straws.

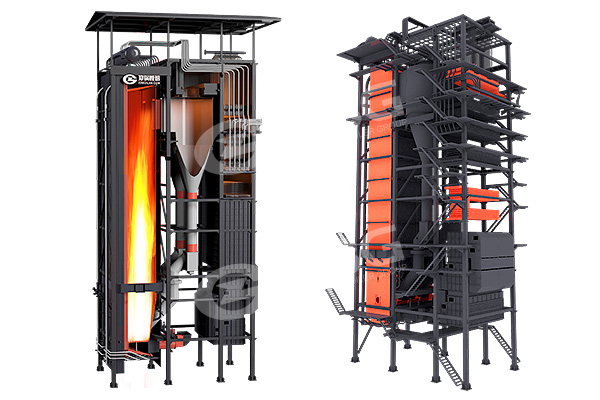

  • National patents, advanced technology
  • Slag comprehensive utilization: the carbon content is below 2%.

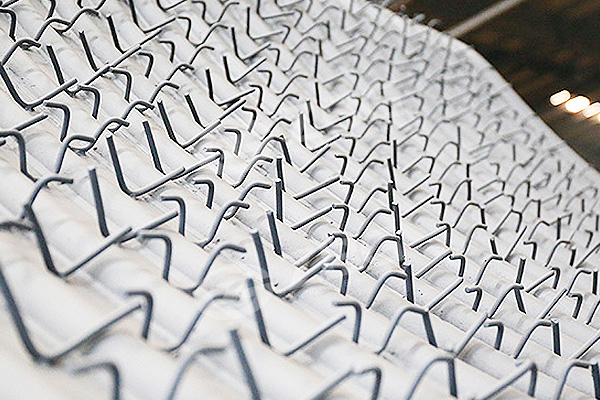

  • Anti-abrasion design, low failure rate, and long operation time up to 350 days per year.
  • Membrane water-cooling wall design, compact in structure.

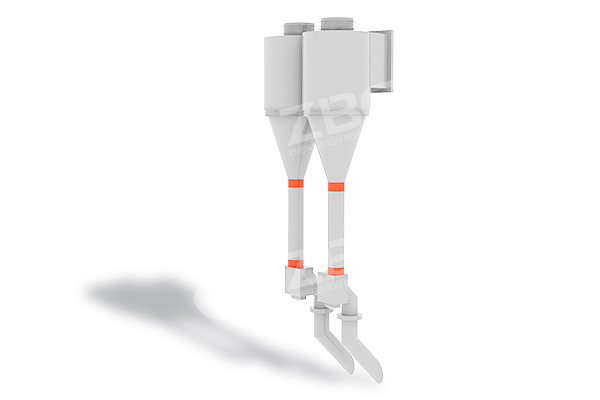

  • Improved boiler efficiency up to 90% and advanced desulfurization process

Related Power Plant Boiler Types:



Parameters

ZG SERIES ENERGY-SAVING CFB POWER PLANT BOILERS ZG SERIES INNER SEPARATION CFB POWER PLANT BOILERS Unit Converters
Model Rated Steam
Capacity
Rated  Steam
Pressure
(bar)
Superheated  Steam
Temperature
(℃)
Feeding Water
Temperature
(℃)
Designing Fuel
t/h BHP
ZG-35/3.82-M 35 2681 38.2 450 105 Anthracite coal
ZG-45/3.82-M 45 3447 38.2 450 105 Bituminous coal
ZG-50/3.82-M 50 3830 38.2 450 105 Anthracite coal
ZG-75/3.82-M 75 5745 38.2 450 105 Brown coal
ZG-75/5.29-M 75 5745 38.2 485 105 Bituminous coal
ZG-90/3.82-M 90 3894 38.2 450 105 Bituminous coal
ZG-110/6.5-M 110 8426 65 485 105 Bituminous coal
ZG-130/9.8-M 130 9958 98 540 150 Bituminous coal
ZG-150/9.8-M 150 11490 98 540 215 Brown coal
ZG-240/9.81-M 240 18384 98.1 540 215 Brown coal
ZG-280/9.81-M 280 21448 98.1 540 215 Brown coal
Model Rated Steam
Capacity
Rated Steam
Pressure
(bar)
Superheated Steam
Temperature
(℃)
Feed Water
Temperature
(℃)
Fuel Type
t/h BHP
ZG-15/3.82-M 15 1149 38.2 450 105 Anthracite coal
ZG-16/3.82-M 16 1226 38.2 450 105 Bituminous coal
ZG-20/3.82-M 20 1532 38.2 485 105 Anthracite coal
ZG-25/3.82-M 25 1915 38.2 450 105 Brown coal
ZG-35/3.82-M 35 2681 38.2 450 105 Bituminous coal
ZG-40/3.82-M 40 3064 38.2 450 105 Bituminous coal
ZG-45/3.82-M 45 3447 38.2 450 105 Bituminous coal
ZG-50/5.29-M 50 3830 52.9 450 105 Bituminous coal
ZG-55/3.82-M 55 4213 38.2 450 105 Brown coal
ZG-65/5.29-M 65 4979 52.9 450 105 Brown coal
ZG-75/3.82-M 75 5745 38.2 450 105 Brown coal

Case

Chemical 75 Tons CFB Boiler Project

Type:CFB boiler Capacity/Hot Power:75 tons Pressure:≥3.82MPa Application:Power generation Project site:China view all content
  • Chemical 75 Tons CFB Boiler Project Type:CFB boiler Capacity/Hot Power:75 tons Pressure:≥3.82MPa Application:Power generation Project site:China
  • 2 sets of 90 ton CFB Boilers in Steel Factory Type:CFB boiler Capacity/Hot Power:180 tons Pressure:3.82 Mpa Application:Steel factory Project site:China
  • ZG30-5.29T CFB Boiler in Garment Factory Type:ZG30-5.29T Capacity/Hot Power:30 tons Pressure:5.29MW Application:Garment factory Project site:China
  • 75 Ton Coal Fired CFB Boiler Installed in Heating Company Type:CFB power plant boiler Capacity/Hot Power:75 tons Pressure:5.29MPa Application:Power generation Project site:China
  • 25T Coal Fired CFB Steam Boiler Project Type:SHX series CFB Boiler Capacity/Hot Power:25 tons Pressure: Application:Industry steam & power Project site:China/Asia
