Complete Power Plant for a Board Industries, Karachi, Pakistan.

The power house shall comprise of 01 No. multi-fuel fired (coal + Biomass) fired super heated boiler with following specifications.

1. Biomass fired boiler

1.1. Maximum Continuous Rating [MCR] on Coal / Biomass 65 ton/hr

2. Pressure:

2.1. Steam pressure at main steam stop valve outlet bar(g) 65

3. Temperature:

3.1. Steam temperature at main steam stop valve outlet °C 490 ±5

3.2. Steam Temperature control range on Coal / Bagasse firing % MCR

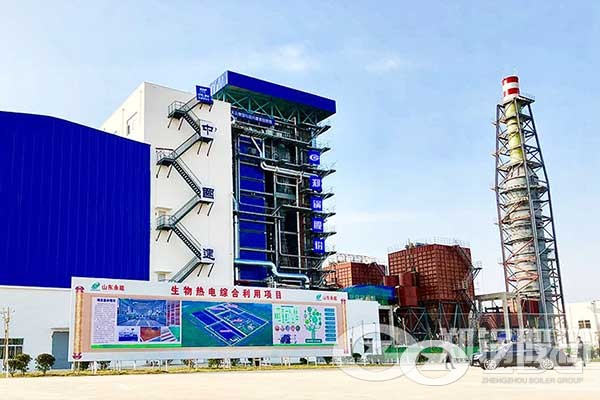

65 T/hr Mutifuel (Biomass+Coal) Fired Boiler

4. Fuel:

4.1. Main fuel 100% Biomass average calorific value 3200 kcal/kg,

30% to 100% coal calorific value 6500 kcal/kg.

4.2. Auxiliary fuel HFO

4.3. Guarantee fuel Biomass + Coal

4.4. Ignition fuel for firing HSD

5. Preliminary Fuel Analysis Data

Rice Husk ASTM Method # Results

• Inherent Moisture (ad) E-949 4.84%
• Total Moisture (ad) E-949 16.73% *
• Ash (ar) E-830 16.12%
• Volatile Matter (ar) E-897 56.98%
• Fixed Carbon (ar) - 10.15%
• Carbon (ar) D-5373 34.18% Hydrogen (ar) D-5373 4.40%
• Nitrogen (ar) D-5373 0.80%
• Sulfur (ar) D-5373 0.26%
• Oxygen (by difference) - 44.24%
• Gross Heating Value (ar) E-711 5710.91Btu/lb
• Sodium AOAC-990.08 0.3%
• Potassium AOAC-990.80 0.95%
• The actual total moisture (ad) can be taken as 45 ~ 55%.
• Coal SOR – Range
• Calorific Value 6500 K.Cal/Kg
• Moisture 10.55%
• Ash 11.30%
• Volatile Matter 39.23%
• Fixed Carbon 42.00%
• Sulphur 1% ~ 2.5%

6. Biomass Fuel firing options (on weight basis)

• Biomass 85% ~100%
• Eucalyptus Bark 15%
• Rice husk 85%
• Eucalyptus Bark 15%
• Coal 30% to 100%
• Wheat Straw 85%
• Eucalyptus Bark 15%
• Corn Cob 85%
• Eucalyptus Bark 15%

7. Electrical power

For all motors

Voltage V 415

Frequency Hz 50

Type AC, 3 phase

For Instrumentation (field switches, Level 220 VAC, 24 VDC, Fluctuation ±15%

This equipment shall be located in an independent building with the operating level at a height of 3-m over the floor level. One overhead traveling crane of 10 tons capacity shall be mounted to facilitate the lifting of the different equipment and parts to the operating level during the erection stage and maintenance period.

The high pressure live steam coming from the steam boilers through well-insulated, steel pipelines shall enter the turbine via throttle valve.

Forced draft type cooling tower shall be installed to guarantee the satisfactory operation of the turbo generators.

The circulation of cooling water through the air and oil coolers of the turbo generators and then back to the cooling tower shall be performed by means of a pumping system conformed by two centrifugal pumps with one of the pumps running and the other one as stand-by.
