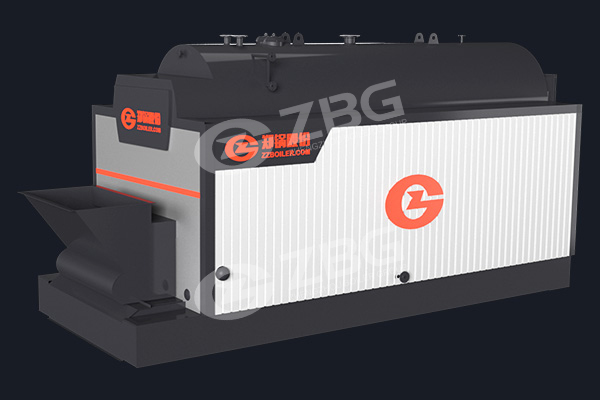

DZL Packaged Biomass Steam Boiler
DZL Packaged Biomass Steam Boiler
Capacity : 2-10 t/1.4-7 MW
Pressure ≤1.6MPa
Wood, Rice Husk, Bagasse, Straw, Sawdust

Food Processing,Hospital,Paper Plant

Brief introduction:

DZL series biomass fired fire tube boiler, as ZBG self-developed product, brings many national prizes on itself with compact structure and good working conditions. Inverted “α” design, make it available to fire biomass pellets and low emission.

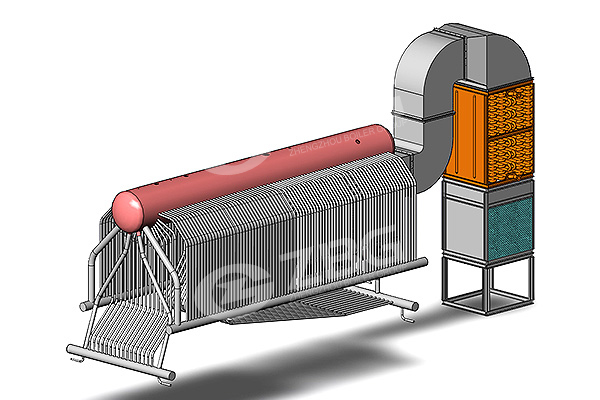

Inverted α furnace arch design

a. Longer fuel combustion period. Front arch is higher and shorter than rear arch, 45°angle between the two arches, which can extend the time of flue gas combustion time, and enhance thermal transferring efficiency;

b. Available to burn various biomass. It design can burn biomass fuels such as rice husk, wood, bagasse, straw, sawdust, sunflower shells, as well as low calorific value coal;

Inverted α furnace arch design

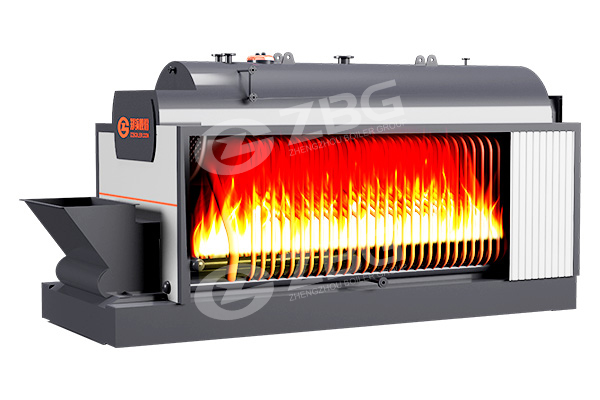

Advanced sealing structure design
Advanced sealing structure design

The side seal of the grate is advanced and reasonable, which can avoid the deficiency of side seal jammed grate and deficiency of side seal burned out. The boilers less than 4t/h adopt side seal cooling and angle iron reinforce plates, and more than 6t/h boiler adopt full touch side seal and down seal structure.

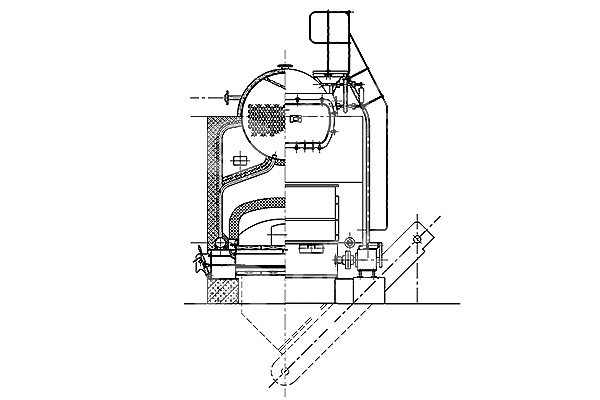

Flexible adjustment, symmetrically distributed wind

Separate adjustable wind chamber under the fire grate is equipped and wind is fed from two sides. It adopts new type crack screw wind adjustment structure so that the wind adjustment and ventilation cross section proportion is 100%. Thus, it is easy to adjust and the wind is distributed symmetrically.

Flexible adjustment, symmetrically distributed wind

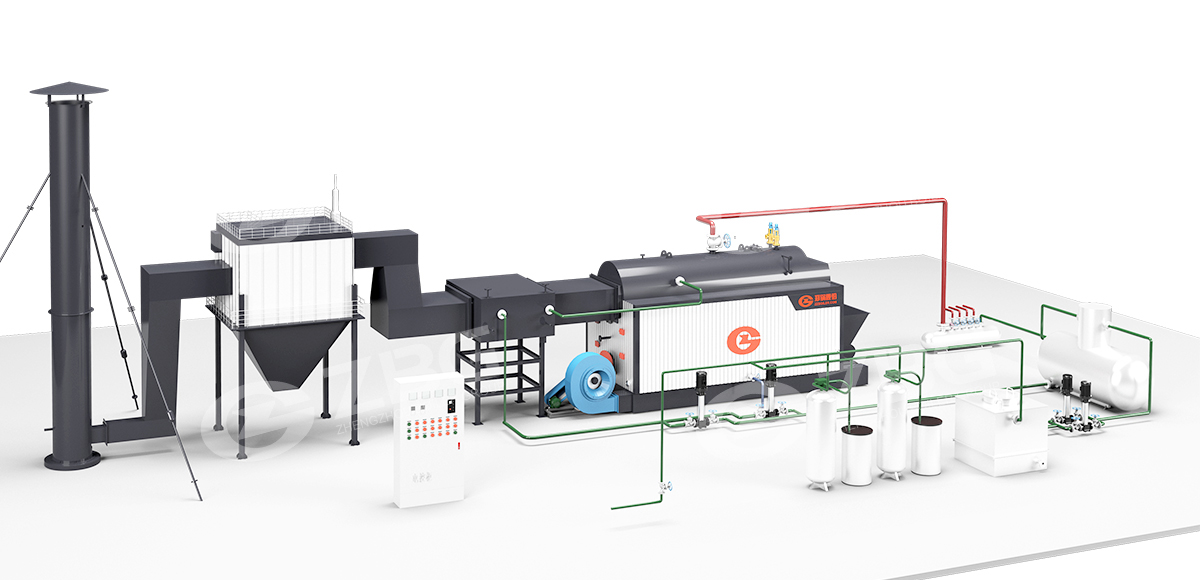

Light weight and compact structure

Light Weight and Compact Structure. It weights 10 to 20 ton, and low freight charge; small volume, compact structure.

Light weight and compact structure
Checking Order Quality Test Before Delivery Check Items When Packing Packaging And Transport
