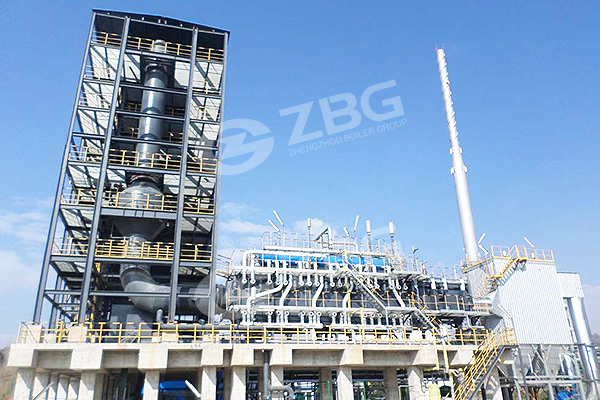

Blast Furnace Gas Fired Boiler

Type: Power Plant Boiler Capacity/Hot Power: 1 - 130t/h Pressure: ≤4.2MPa (42bar) Fuel: Blast furnace gas Application: Steel & Iron Industry

Overview

Brief Introduction:

Against the background of stricter emission requirements and operating cost saving programs, the steel industry requires intelligent and reliable solutions for the energy-efficient use and environmentally friendly disposal of process gases. The blast furnace gas fired boilers are used for the combustion of process gases produced in steel industry.

Features:

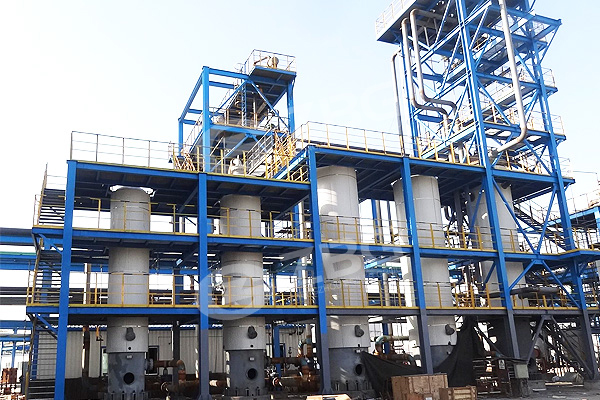

  • Adopt “Π” type layout:
    The coke oven gas/blast furnace gas boiler adopts “Π” type layout, front suspening back supporting, the plumping system, and superheater are suspended in the boiler roof, economizer and air preheater are set at the rear of steel frame, and the air preheater can be pulled out from the boiler rear, easy for maintenance and inspection.

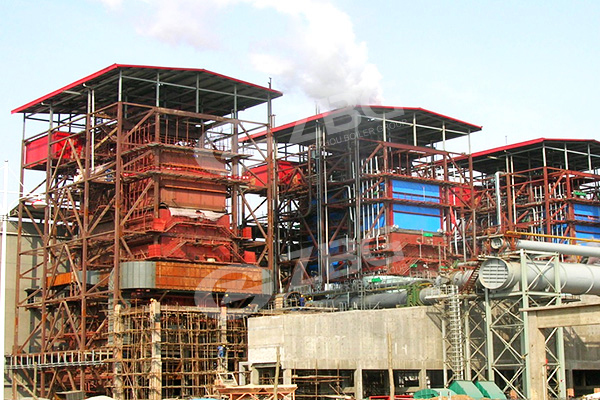

  • Square furnace design:
    Burners are arranged in the four corners, using vortex burners to ignite the four corners. Higher air temperature can meet the requirement of coal gas firing temperature and aerodynamic conditions, ensuring fuel gas fully burning, and preventing fuel gas and air mixture within the burner as well.

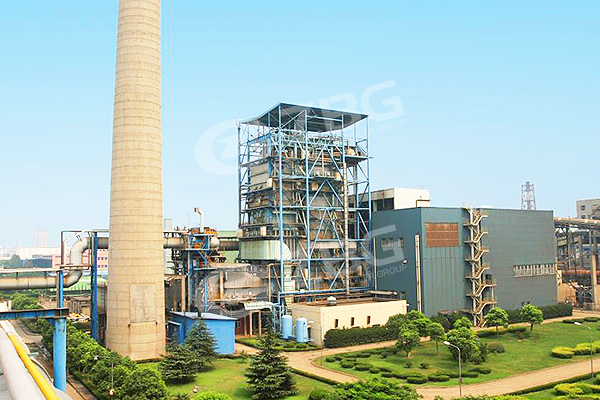

  • Multiple safety protection devices:
    In addition to the normal protection device, the boiler is equipped with automatic ignition device, flame monitoring device, flame-out protection device, and automatically cut-off gas supply device when coke gas pressure is below a certain value.

Parameters

Blast Furnace Gas Fired Boiler Unit Converters
Model Rated Evaporation Rated Steam Pressure
(bar)
Rated Steam Temperature
(℃)
Water Temperature
(℃)
Fuel Factory Mode
t/h BHP
SZS10-0.7-Q 10 776 7 170 20 Coke Oven Gas
Blast Furnace Gas
Packaged
SZS15-1.25/250-Q 15 1149 12.5 250 105 Packaged
SHS20-2.5/400-Q 20 1532 25 400 105 Field Assembly
SZS20-1.25-Q 20 1532 12.5 194 20 Packaged
ZG-20/3.82-Q 20 1532 38.2 450 104 Packaged
ZG-20/4.2-Q 20 1532 42 450 104 Packaged
DHS25-2.5/400-Q 25 1915 25 400 104 Field Assembly
SHS30-3.82-Q 30 2298 38.2 249 104 Field Assembly
SHS35-3/400-Q 35 2681 30 400 105 Field Assembly
ZG-35/3.82-Q 35 2681 38.2 450 104 Field Assembly
ZG-45/3.82-Q 45 3447 38.2 450 104 Field Assembly
ZG-60/3.82-Q 60 4596 38.2 450 105 Field Assembly
ZG-75/3.82-Q 75 5745 38.2 450 104 Field Assembly
